LD Systems VIBZ 12 DC 12-Channel Live Sound Mixing Console ( Clearance SALE )
https://www.ld-systems.com/en/solutions/dj-musician/applications/bands/4619/vibz-12-dc
For B2B , B2C , D2C ( Direct-to-consumer ) please whatsApp ( 24 hours ) at +6596238981 for enquiry and stock availability. ( Also get the FULL Catalog / brochure thru WhatsApp )
- 12 Channels (4 Mono, 4 Stereo) + 100 DFX
- 6 Microphone Inputs with 3-Band EQ
- Channels 5/6 & 7/8: Stereo 1/4" Inputs
- 2 Stereo Channels with 2-Band EQ
- Single Knob Compressor (CH 1-4)
- Main Output: Two XLR & Two 1/4"
- Two Aux Sends + One Stereo Return
- 2-Track Input and Output
- Group Output 1-2 via Two 1/4"
- Includes Power Cord

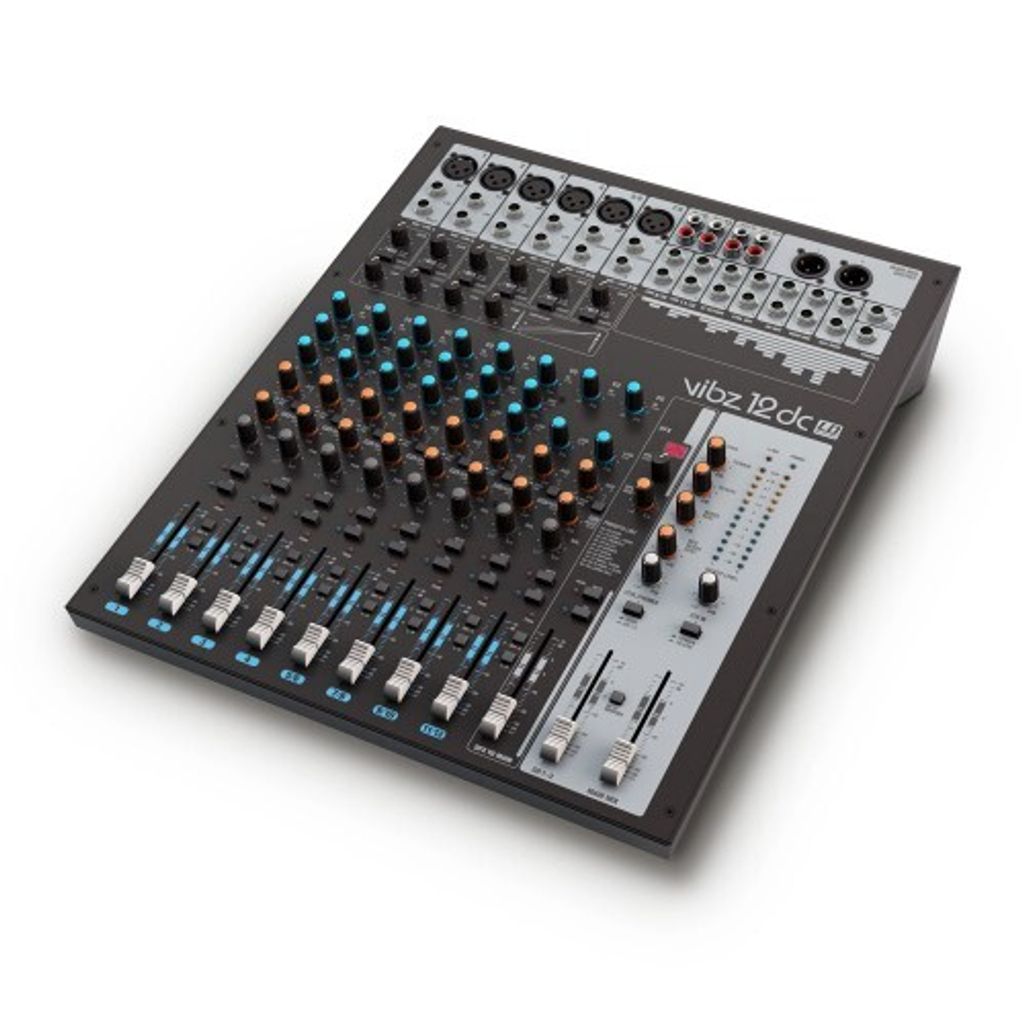

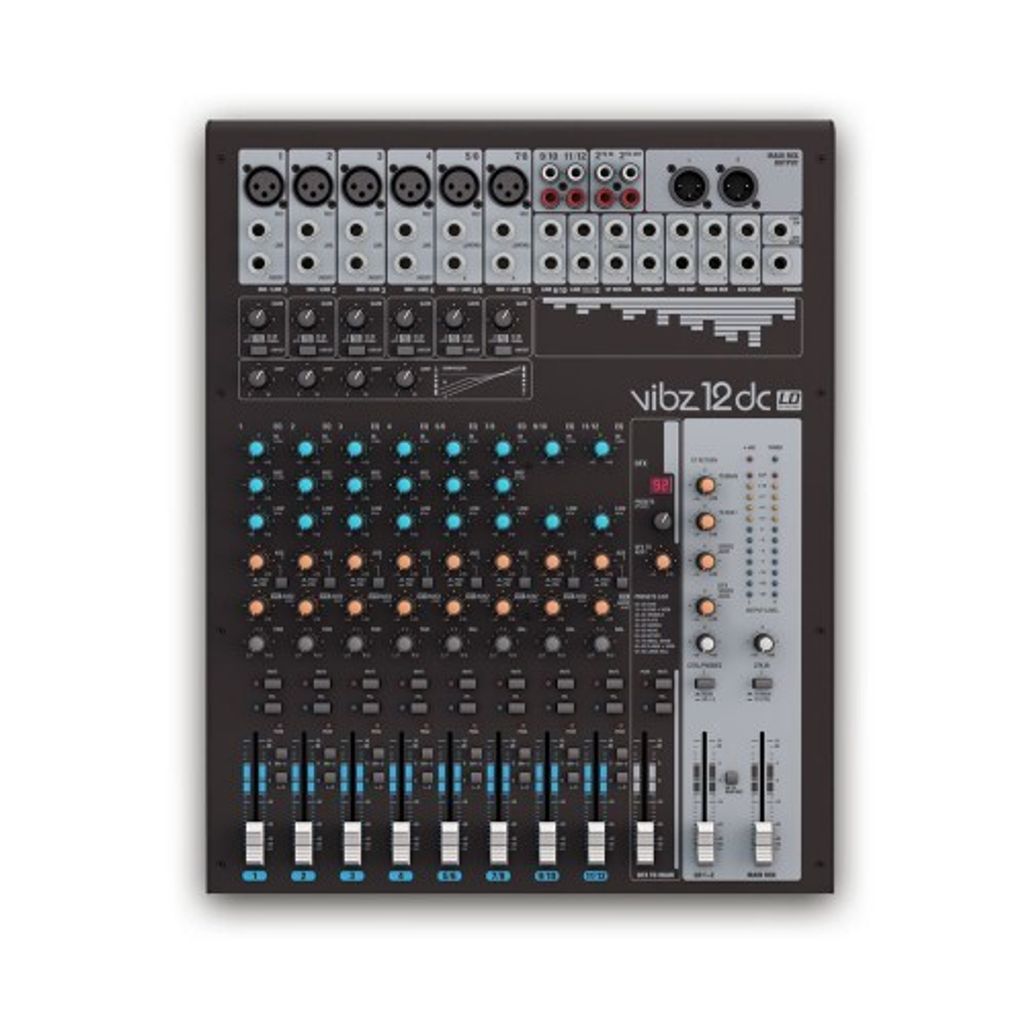

LD Systems VIBZ 12 DC 12-Channel Live Sound Mixing Console
Professional Audio Mixing for Live Events, Houses of Worship, Studios, and Corporate Applications
Real-World Applications
The LD Systems VIBZ 12 DC is suitable for:
- Live Bands
- Solo Performers
- Houses of Worship
- Schools
- Universities
- Hotels
- Conference Rooms
- Corporate Events
- Government Functions
- Podcast Studios
- Live Streaming
- Community Centres
- Wedding Venues
- Restaurants
- Bars
- Rental Companies
- Fitness Studios
- Product Launches
- Outdoor Events
Its versatility makes it an excellent choice for almost any professional audio application.
The LD Systems VIBZ 12 DC 12-Channel Mixing Console features a built-in effects engine and single knob compression making it well suited for live sound reinforcement applications ranging from live bands to lecturers and presenters as well as home recording studios, small broadcast setups, and podcasting. It has six balanced microphone inputs with high-quality preamps.
Channels 1-4 include channel inserts and single-knob compression, while channels 5/6 and 7/8 include stereo 1/4" inputs. Channels 1-8 include a three-band EQ. Channels 9/10 and 11/12 are stereo 1/4" inputs only and feature a two-band EQ. All channels feature 2 aux sends, with aux 2 also sending to the internal effects bus with 100 presets. Each channel also includes a balance control, pre-fade listen (PFL), mute, and routing buttons for sending to the main output (L&R) and group outputs (GR1/2). Other features include stereo XLR main outputs, stereo 1/4" main outputs, stereo 1/4" group outputs, and a headphone output as well as global phantom power for working with condenser microphones. The VIBZ 12 DC ships with a standard IEC cable.
- 12-channel mixer with 6 microphone channels
- 4 stereo line inputs
- Effective 3-band EQ
- 2 stereo channels with 2-band EQ
- Sliding adjustable compressor
- Digital effects section with 100 presets
- Master, Monitor, Groups, and headphone outputs
- Built-in power supply
LD Systems VIBZ 12 DC Specs
| Number of Channels (Input) | 12 |
| Mono Mic/Line Input Channels | 6 |
| Mono Mic/Line Input Connections | XLR-F, 1/4"/ 6.35 mm TRS |
| Mono Mic Input Type | Electronically Balanced |
| Mic Frequency Response | 10 Hz to 45 kHz |
| Mic Amplification Range | 50 dB |
| Channel Crosstalk | 90 dB |
| Mic THD | 0.0058% |
| Mic Input Impedance | 4 Kilohms |
| Mic SNR | 113 dB |
| Mono Line Input Type | Electronically Balanced |
| Line Amplification Range | 50 dB |
| Line THD | 0.0045% |
| Line Impedance | 21 Kilohms |
| Line SNR | 116 dB |
| Mono Channel EQ Range | Treble: ±15 dB @ 12 kHz Mids: ±15 dB @ 2.5 kHz Bass: ±15 dB @ 80 Hz |
| Channel Inserts | Channel 1 to 4 |
| Channel Insert Connection | 1/4" / 6.35 mm Stereo Jack (TIP = Send / RING = Return) |
| Phantom 48 VDC Power | Yes |
| Low Cut Frequency | 95 Hz |
| Compressor | Channel 1 to 4 Only |
| Channel Controls | Gain, Low Cut, Compressor, EQ Hi, EQ Mid, EQ Low, DFX, Pan/Bal, Channel Fader |
| Stereo Line Input Channels | 4 |
| Stereo Line Input Connections | 2 x 1/4" / 6.35 mm (L-Mono/R) 2 x RCA |
| Stereo Line Input Type | Unbalanced |
| Stereo Line Frequency Response | 10 Hz to 45 kHz |
| Stereo Line Amplification Range | 50 dB |
| Channel Crosstalk | 62 dB |
| Stereo Line THD | 0.0045% |
| Stereo Line Impedance | 3.7 Kilohms |
| Stereo Line SNR | 116 dB |
| Stereo Channel EQ Range | Treble: ±15 dB @ 12 kHz Bass: ±15 dB @ 80 Hz |
| Channel Controls | EQ Hi, EQ Low, DFX, Bal, Channel Fader |
| AUX Sends | 2 per Channel |
| AUX Sends Connections | 1/4" / 6.35 mm TS |
| Stereo AUX Return Channels | 1 |
| Stereo AUX Return Connections | 2 x Unbalanced 1/4" / 6.35 mm TS |
| Stereo 2-Track Output Channels | 1 |
| Stereo 2-Track Output Connection | 2 x RCA |
| Stereo 2-Track Input Channels | 1 |
| Stereo 2-Track Input Connection | 2 x RCA |
| Stereo Main Outputs | 2 |
| Stereo Main Outputs Connections | 2 x XLR 2 x 1/4" / 6.35 mm TRS |
| Stereo Main Output Impedance | 120 Ohms |
| Stereo Main Output Max. Level | 20 dBV |
| Stereo Control Room Outputs | 1 |
| Control Room Out Connections | 2 x 1/4" / 6.5 mm TS Jack |
| Subgroup Outputs | 2 |
| Subgroup Outputs Connection | 2 x 1/4" / 6.35 mm |
| Headphone Output | 1 |
| Headphone Connections | 1/4" / 6.35 mm Stereo Jack |
| Headphone Impedance | 30 Ohms |
| Digital Effects | Yes |
| Number of Presets | 100 |
| Foot Switch | 1/4" / 6.5 mm TS Jack |
| Main Section Controls | DFX Presets, DFX Mute, DFX to Main Fader, ST Return, 2 TK In, 2 TK In to Main/to CTRL, Phones/CTRL, Phantom Power +48V, Main Mix Fader, Power |
| Display & Indicators | Channel Peak, Effects Peak, DFX LED Display, Power, Phantom Power, 2 x 12-Segment Level Displays |
| Operation Voltage | 100 to 240 VAC 50/60 Hz |
| Power Consumption | 30 W |
| Power Connector | IEC Power Socket |
| Temperature (Operating) | 32 to 113°F / 0 to +45°C |
| Humidity Range Operating | 10 to 80% Relative |
| Dimensions | 13.7 x 17.3 x 3.8" / 350 x 440 x 98 mm |
| Weight | 9.2 lb / 4.2 kg |
